Pipeine Wastewater Grinder (HCP)
Pipeine Wastewater Grinder
Specifications
|
Model HCP |
Flow Rate (m3/hr) |
Pipe Diameter (mm) |
Pressure Drop (KPA) |
Net Weight (kg) |

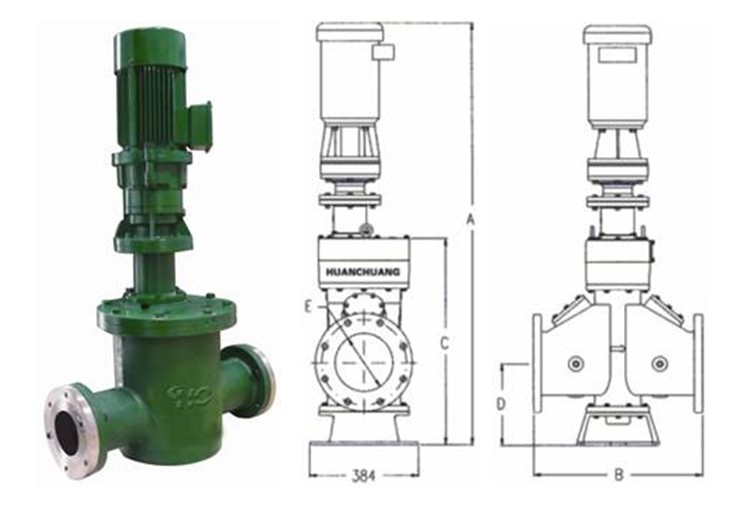

Overall Dimension (mm) |
||||
|
A |
B |
C |
D |
E |
|||||
|
HCP -90 |
90 |
100 |
3 |
188 |
1423 |
483 |
711 |
206 |
100 |
|
HCP -140 |
140 |
150 |
6 |
192 |
1423 |
534 |
711 |
232 |
150 |
|
HCP -185 |
185 |
200 |
11 |
197 |
1423 |
584 |
711 |
254 |
200 |
|
HCP -230 |
230 |
250 |
8 |
294 |
1727 |
686 |
1010 |
283 |
250 |
|
HCP -275 |
275 |
300 |
11 |
306 |
1727 |
787 |
1010 |
305 |
300 |
Operation Principle
1. Solids enter grinders through pipeline flange connection.
2. Solids pass through cutters for size reduction.
3. Solids are cut into tiny particles and no threat to downstream equipment.
